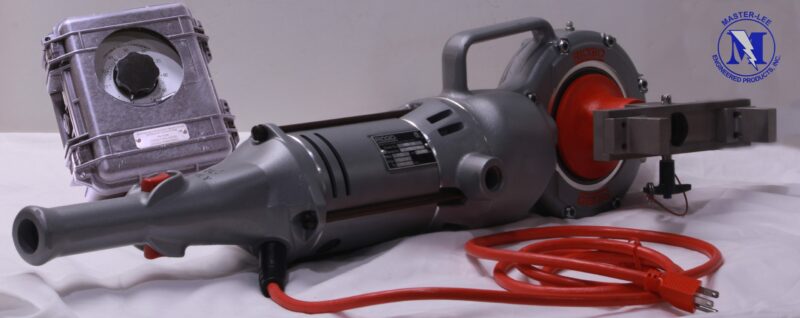

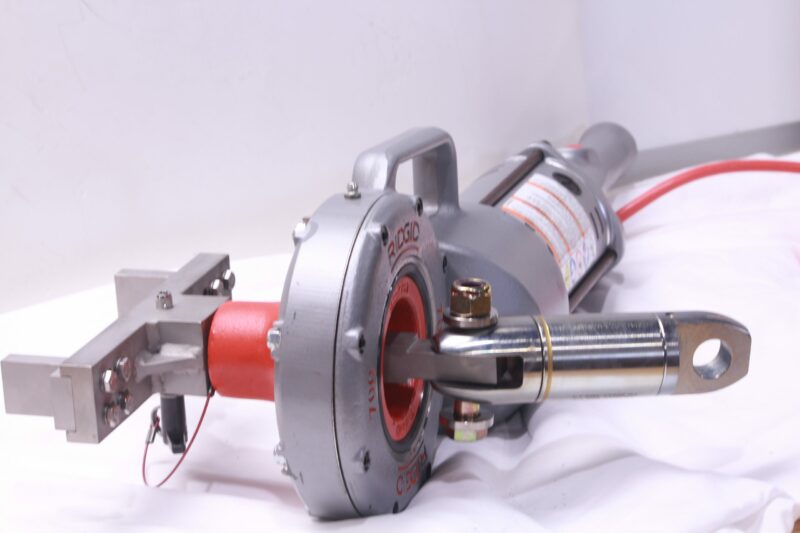

Reactor Head Stud Turnout Tool
The Cordless Reactor Vessel Head Stud Turnout Tool from Master-Lee Engineered Products is designed for quick, effortless, and safe removal or installation of reactor vessel head studs, making it the top choice for field technicians industry-wide.
This innovative cordless power drive unit streamlines the threading and unthreading of studs from the reactor vessel, eliminating the risks associated with electrical cords. Additionally, a load-indicating spring canister, located between the stud and the overhead hoist, performs dual functions: it monitors the load weight and acts as a buffer to ensure smooth stud movement during both removal and installation.
With a focus on speed, safety, and cost-effectiveness, the Master-Lee Engineered Products Cordless Reactor Vessel Head Stud Turnout Tool is built with the most reliable components, ensuring years of trouble-free performance.
A 110 VAC version with Variac is also available.
| Part Image | Part Description | EPI Part No. | Quantity |
|---|---|---|---|
 |
Reactor Head Stud Turnout Tool Package – 7″ Studs Corded Version -Specify Lifting Spindle – |
D1642 | 1 |
|
Reactor Head Stud Turnout Tool Package – 6″ Studs Corded Version -Specify Lifting Spindle – |
D1643 | 1 |
 |
Reactor Head Stud Turnout Tool Package – 7″ Studs Battery Powered -Specify Lifting Spindle – |
D4378 | 1 |
|
Reactor Head Stud Turnout Tool Package – 6″ Studs Battery Powered -Specify Lifting Spindle – |
D4377 | 1 |
| Replacement Parts: | |||
 |
Lifting Spindle: 1-1/4″- 7 UNC | C1663 | 1 |
|
Lifting Spindle: 1-1/4″- NPT | C1664 | 1 |
 |
Lifting Spindle: 1-1/2″- 6 UNC | C1662 | 1 |
 |
Yoke Assembly | D1644 | 1 |
 |
Turnout Finger | C1649 | 1 |
 |
Retaining Ball Lock Pin | D1644-6 | 1 |
| Image Not Available | Power Drive Adapter | D1642-6 | 1 |
 |
Power Drive | D1642-5 | 1 |
 |
Swivel | C1651 | 1 |
| Image Not Available | Swivel Bolt and Nut | D1642H07 | 1 |
| Image Not Available | Lifting Shackle | D1642H08 | 1 |
| Image Not Available | Lifting Eye | D0013H17 | 1 |
 |

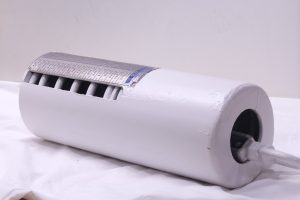

Spring Canister Assembly | D4254 | 1 |
 |

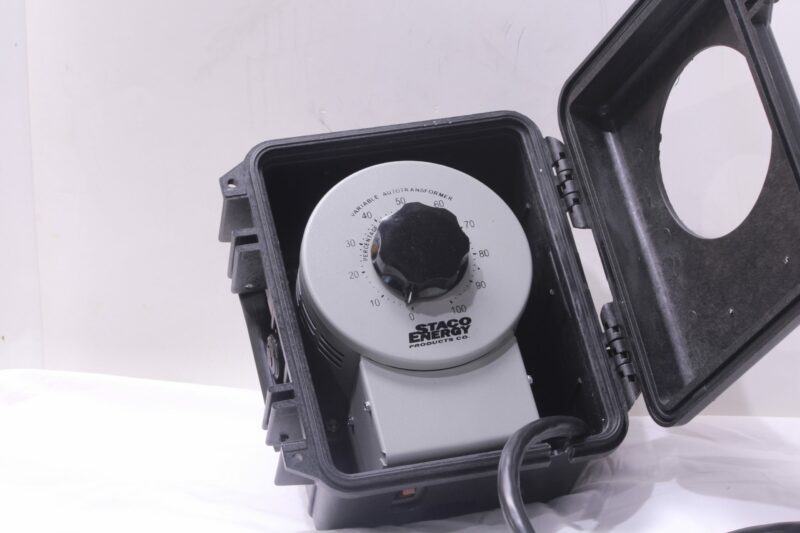

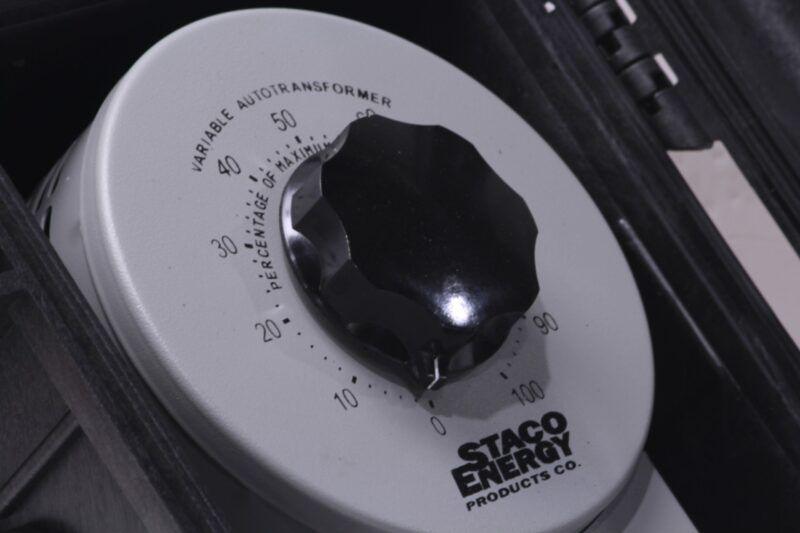

Speed Control (Variac) w/ Storage Box | D1642H09 | 1 |
| Image Not Available | Speed Control (Variac) Storage Box ONLY | D1670 | 1 |
