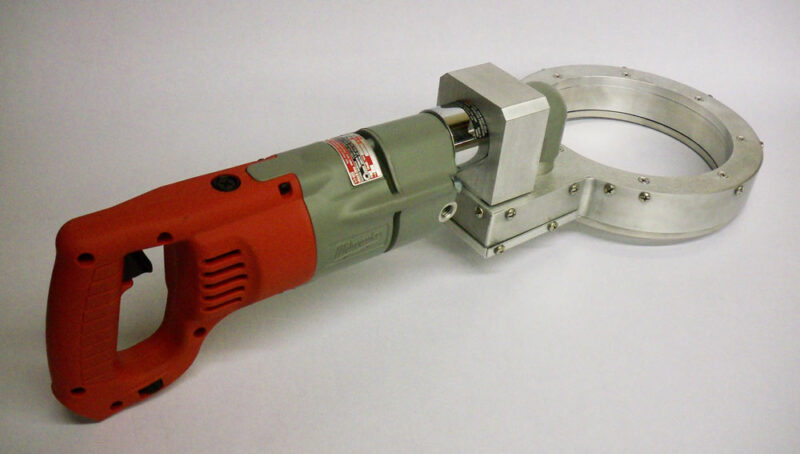

RX Head Nut Runners
Designed for removal and installation of RX Head Nuts, EPI’s RX Head Nut Runners can adapt to any size or style of RX Head Nut used at your plant.
The RX Head Nut Runners is powered by a 120 VAC electric which drives, through an internal gear assembly, custom sized fingers that engage the slots of the RX Head Nut. With a trigger controlled speed feature, the user has the ability to maintain and regulate turnout speed. Due to its modular design and EPI’s attention to detail, maintenance is kept to a minimal level.
Contact us to learn more about our RX Head Nut Runners
| Part Image | Part Description | EPI Part No. | Quantity |
|---|---|---|---|
 |

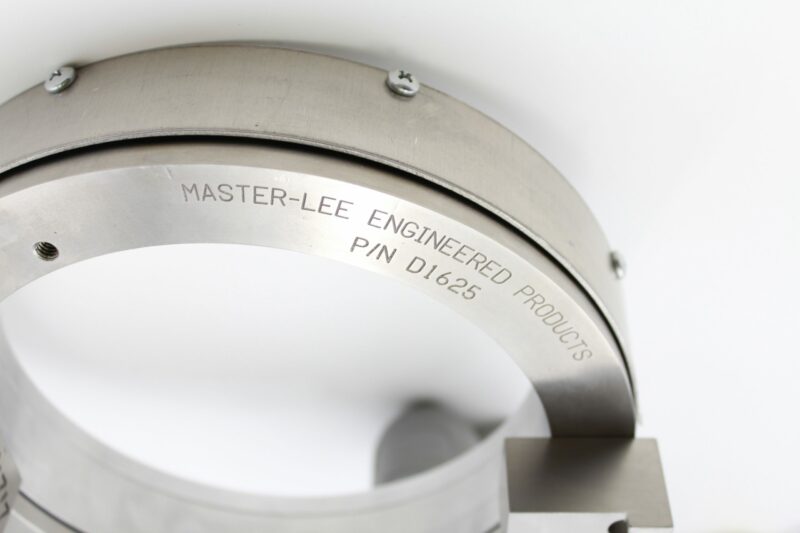

RX Head Nut Runner Tool Package | D1625 | 1 |
| Replacement Parts: | |||
 |
Main Top Plate | D1628 | 1 |
 |
Ring Gear and Bearing Assembly (Consists of the following components)► Gear► Bearing► Bearing Seat► Dog Ring ► Retaining Ring |
D1626 | 1 |
 |
Drive Gear | C1633 | 1 |
 |
Drill Bottom Clamp | C1632 | 1 |
| Image Not Available | Drill Top Clamp | C1631 | 1 |
 |
Gear Housing Cover | D1627 | 1 |
 |
Fingers (custom) | Call | 1 set |
