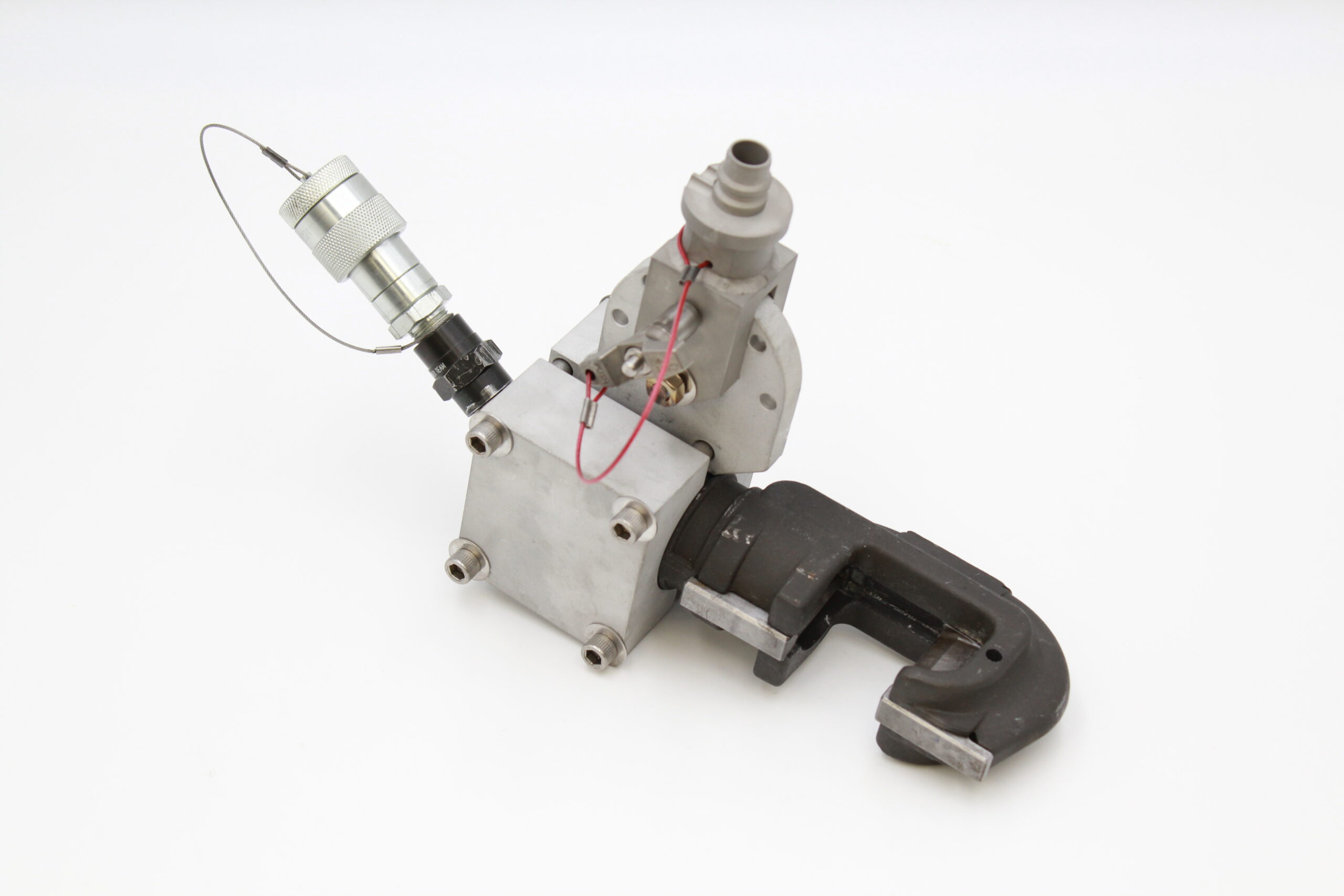

Mini Cutter System
Engineered to compliment MLEP’s AirGrips Tooling, the hydraulically operated Mini Cutter System is an excellent tool for underwater cutting.
Coupled to the powerful Electric-Hydraulic Pump, Master-Lee’s Mini Cutter is capable of cutting up to 9/16″ round steel bar. This power is transferred/supplied via UCON® Trident AW-32 hydraulic fluid, the most accepted brand in the industry for use in nuclear power, marine, and forestry applications. Adapted to the articulating wrist this cutter can be preset for horizontal, vertical, or 45° cutting positions.
| Part Image | Part Description | EPI Part No. | Quantity |
|---|---|---|---|
 |
Mini Cutter System | D4948 | 1 Package |
| Components Included: | |||
 |
Electric-Hydraulic Pump Unit | D2983 | 1 |
  |

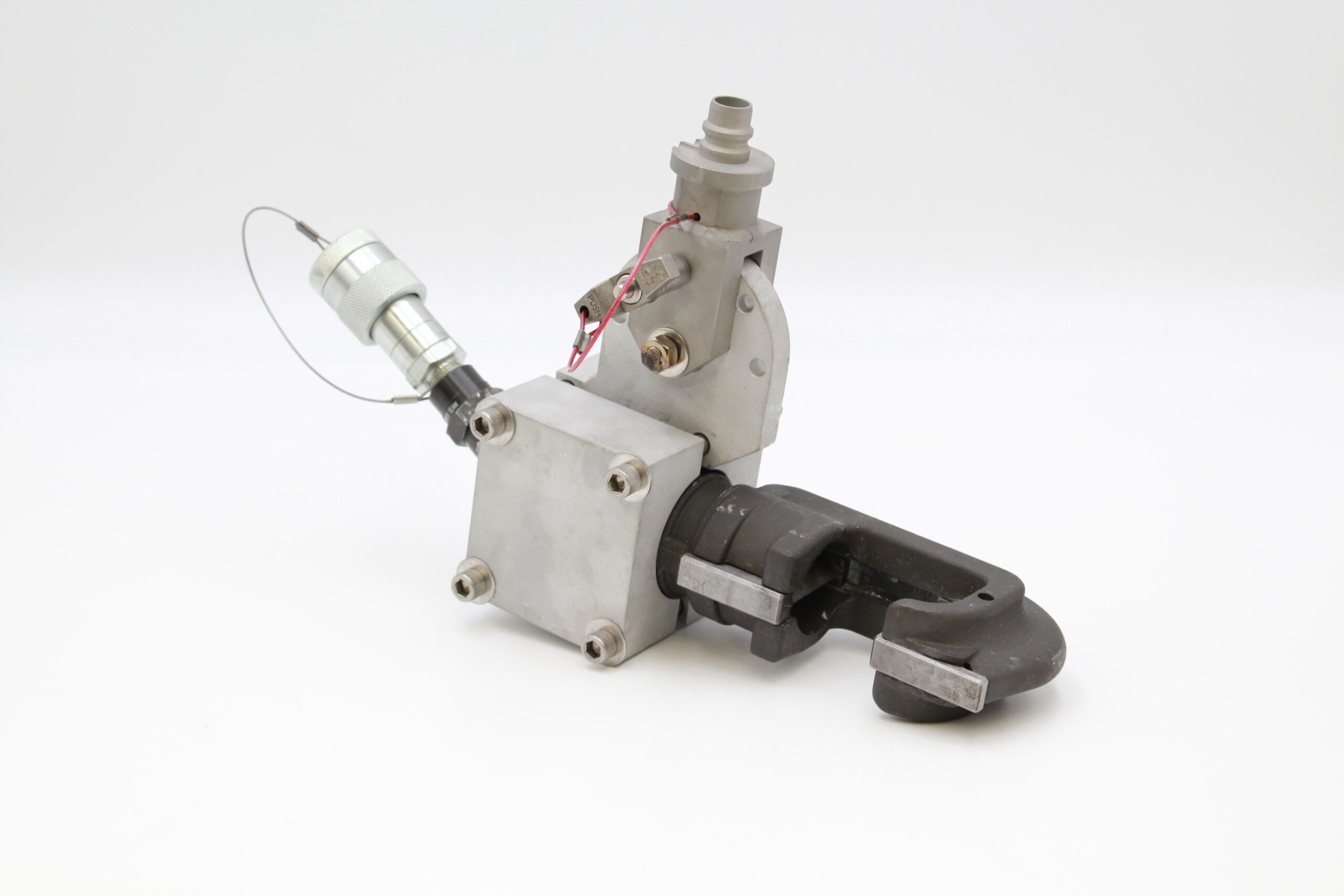

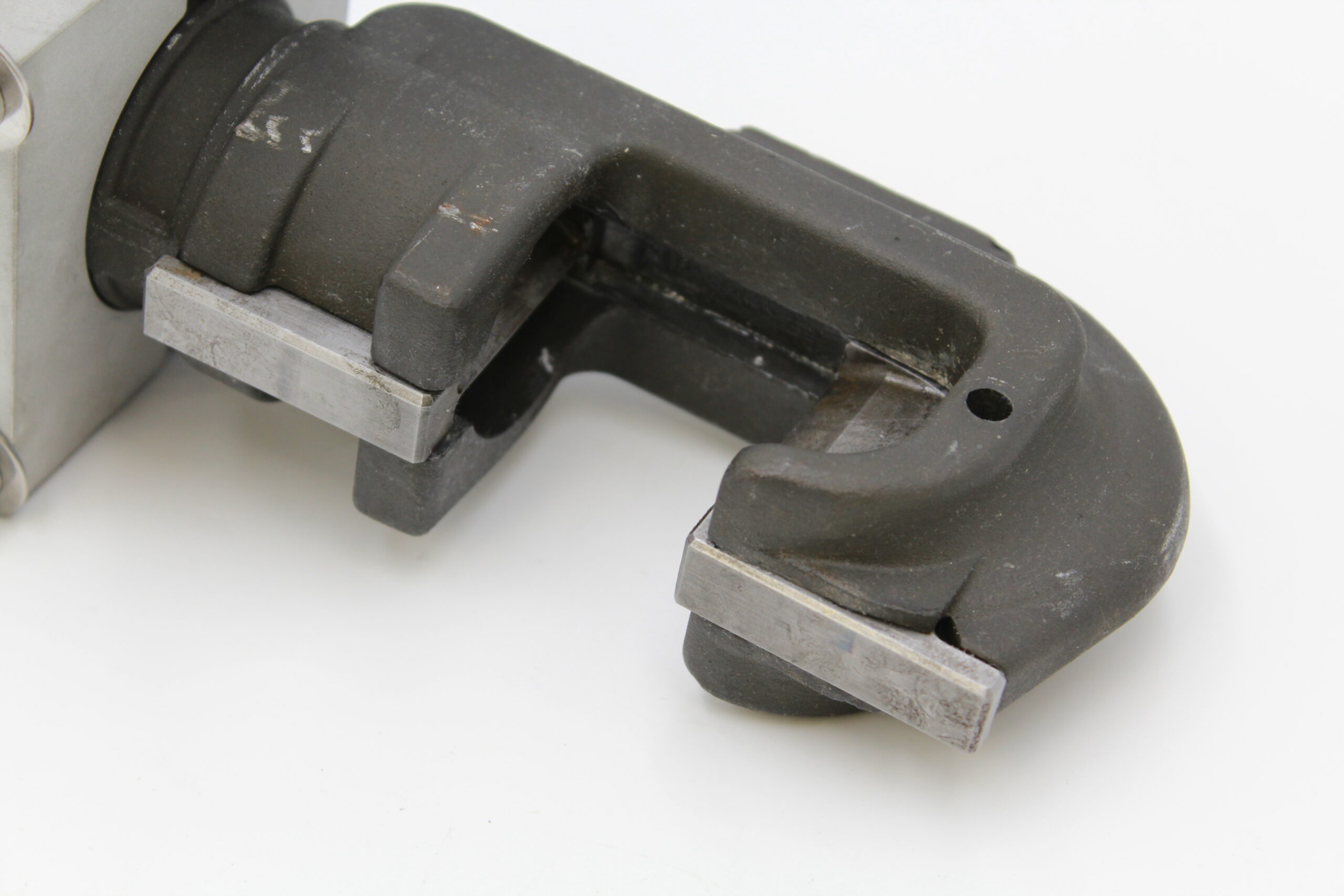

Mini Cutter Head | D4949 | 1 |
 |

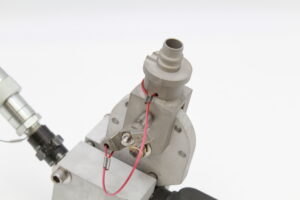

Cutter Wrist for AirGrips Mast | D0309 | 1 |
 |
50′ Hydraulic Hose | C2018 | 1 |
| Replacement Parts: | |||
| No Picture Available | Mini Cutter Rebuild Kit | Contact Us | 1 |
| No Picture Available | Mini Cutter Extra Cutter Blades | Contact Us | 2 |
|
Cutter Wrist for AirGrips Mast | D0309 | 1 |
| No Picture Available | Stainless Steel Cutter Wrist (Upgrade) | D0309G01-SS | 1 |
 |
AirGrips Mast Adapter | D3961 | 1 |
|
50′ Hydraulic Hose | C2018 | 1 |
| No Picture Available | UCON Trident AW-32 Hydraulic Fluid (5 gal) | CALL | 1 |
