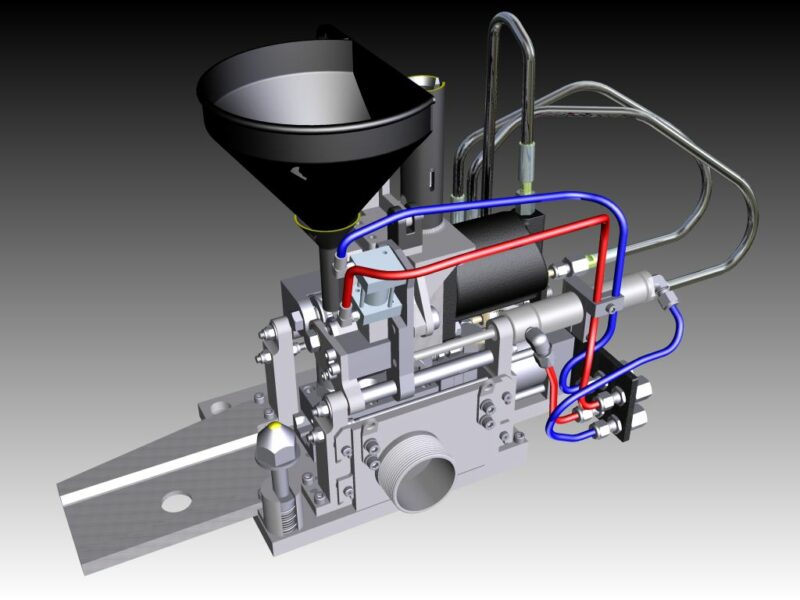

ICI Cutter System
Designed to expedite the process of cutting ICI (In-Core Instrumentation) cables, EPI’s ICI Cutter System is the newest tool of its kind to the industry. Field tested to reduce man-hours, dose and cost, this unit stands at the forefront of automated underwater cutting.
Built as a lightweight and compact unit, the ICI Cutter System utilizes a hydraulic feed motor as well as a hydraucally operated cutter head. Pneumatic cylinders are tasked with providing the force necessary to eliminate ‘slippage’ of the ICI cable. Connected to the main control unit – which can be run manually or set to automatic mode – the ICI Cutter System controls are easily maintained by the engineer/technician.
Some of the technical specifications:
- System Pressure 2500 psi Minimum
- Auto / Stop / Manual Operation
- PLC controlled timing and valving
- Cutter pressure 1500 psi (adjustable 1,000-2,000 psi)
- Motor feed pressure 1100 psi (adjustable 500-1500 psi)
- System hydraulic fluid – UCON Trident AW-32
- (5) 50′ thermoplastic hydraulic hoses
- Hydraulic Quick-Disconnect fittings
- Power Requirements: 220 Volt single phase
- Adjustable 0-130 psi air regulator
Please contact our engineering sales staff to discuss your needs.
| Part Image | Part Description | EPI Part No. | Quantity |
|---|---|---|---|
 |
ICI Cutter System | CALL | 1 Package |
| Components Included: | |||
 |
ICI Cutter | CALL | 1 |
 |
ICI Cutter Power/Control Console | CALL | 1 |
 |
Set of (5) 50′ thermoplastic hydraulic hoses | CALL | 1 |
 |

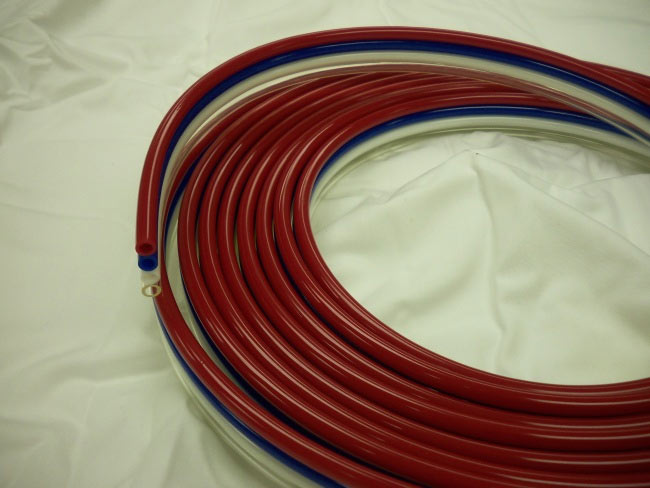

Set of quad-core 50′ polyurethane air hose (1/4″) | CALL | 1 |
 |
AirGrips 10′ Center Mast Section (J-Lock) | D0086-10 | 12 |
 |
ICI Cutter Motor (Spare) | D0878-R1 | 1 |
 |
ICI Cutter Cylinder (Spare) | D0885-R2 | 1 |
|
Set of (5) 50′ thermoplastic hydraulic hoses (Spare) | CALL | 1 |
 |
ICI Cutter Parts Package (Spare) | CALL | |
 |
► Cutting Blade | C0991-R0 | 1 |
|
► Sliding Blade Screw | C0993-R0 | 1 |
 |
► Disc Blade | C0994-R0 | 1 |
 |
► Retainer Nut | C1385-R0 | 1 |
 |
► Cam Wheel | C1389-R0 | 1 |
 |
► Feed Wheel | C0955-R1 | 1 |
 |
Sliding Blade Replacement Tool | E0833-R3 | 1 |
 |
Extension Hex Wrench | D1431-R0 | 1 |
 |
1-1/8″ Hex Socket Tool (for use with D0833-R3) | D0722-15 | 1 |
 |
ICI Hook Tool | D0930-R0 | 1 |
 |
Round Blade Tool Kit (includes tool and the following): | D0928-R2 | 1 |
 |
► Polyurethane Air Tubing – 50′ | CALL | 1 |
 |
► Single Acting Valve, Regulator, & Gauge Assembly | D0010G06-SA | 1 |
 |
Hydraulic Quick-Disconnects (1M and 1F) | CALL | 1 |
| Image Not Available | 90o Elbow, 1/4″ Tube x 1/8″ NPT | CALL | 1 |
| Image Not Available | 1/4″ Tube Coupler | CALL | 1 |
| Optional Equipment: | |||
| Image Not Available | ICI System Storage Box | CALL | |
| Image Not Available | ICI Cutter and Tooling Storage Case | CALL | |
 |
ICI Hook Tool (for handling) | D0930 | 1 |
 |

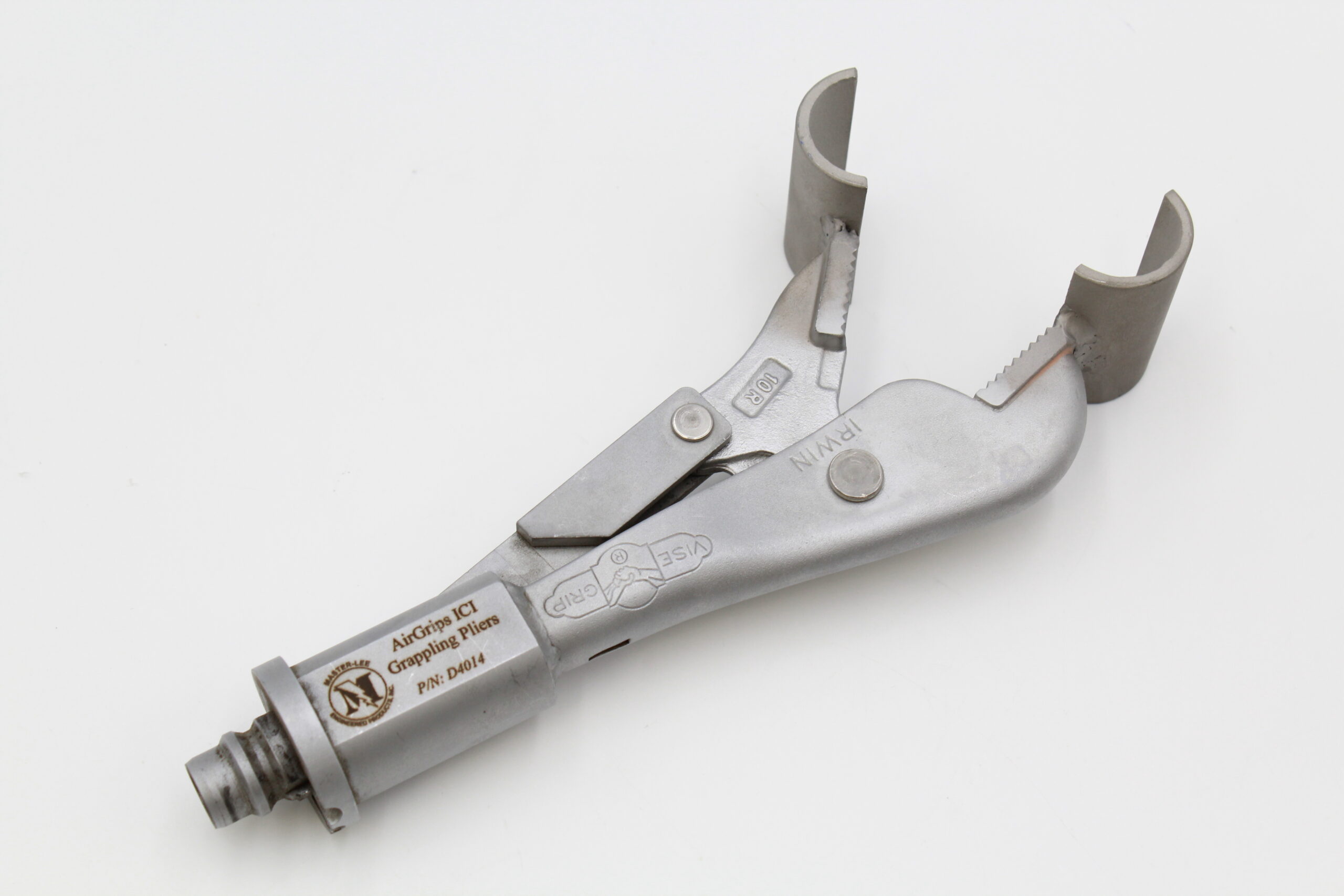

ICI Vice Grips Tool (for handling) | D0931 | 1 |
 |
ICI Cutting System Debris Canister | CALL | |
|
ICI Cutting System Debris Canister Storage Rack (single cell) | CALL | |
 |
ICI Cutting System Debris Canister Storage Rack (triple cell) | CALL | |
 |
ICI Cutting System Debris Canister Handling Tool | CALL | |
